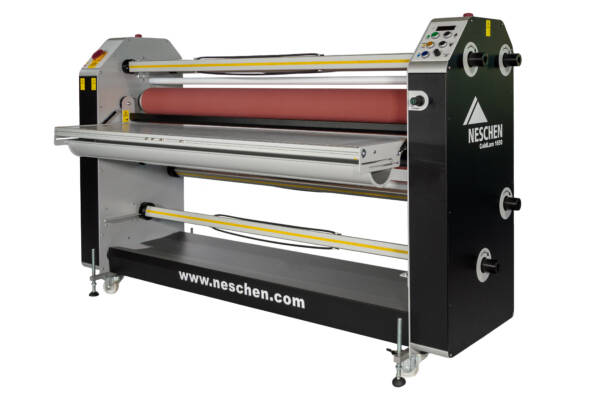

ColdLam 1650 SR

The Neschen ColdLam 1650 SR is a versatile cold laminator equipped with high-quality silicone rollers (SR) that deliver exceptionally clean and residue-free results. With a 1,650 mm working width and speeds of up to 8 m/min, it is ideal for processing pressure-sensitive materials. Its robust construction, user-friendly operation, and optimized roller technology make it a perfect choice for signmaking, graphic production, and mid-sized display manufacturers.

SKU: 6044934 Category: Product ID: 21804
Find a Dealer

Description

This is our ColdLam 1650 SR…

…the optimized version of our proven all-rounder. The ColdLam 1650 SR is equipped with high-quality silicone rollers (SR), providing excellent non-stick properties and exceptionally clean lamination results. Designed for pressure-sensitive applications, it offers maximum functionality, ease of use, and a robust overall construction. The flip-up table and pull-out unwind tray also simplify handling of XL media.

Features:

  • High-quality silicone rollers (SR) for perfectly clean results
  • Ergonomic control panel for easy operation
  • Flip-up feed table for convenient loading
  • Pull-out unwind tray for effortless feeding of single prints up to 10 m (32 ft)
  • Auto-grip material holders for user-friendly loading
  • Second control panel at the rear of the machine
  • Integrated compressor and roll-to-roll functionality

Optional:

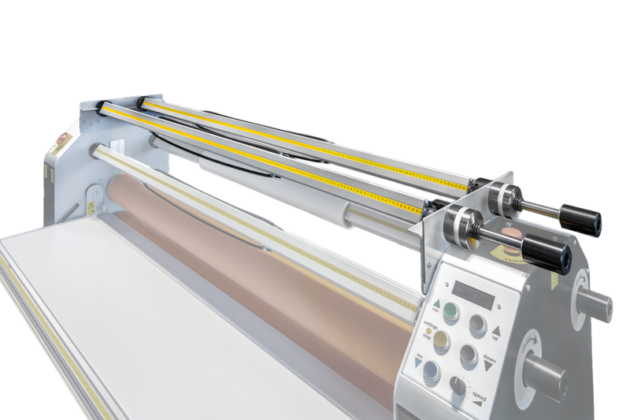

  • Add-on Stack

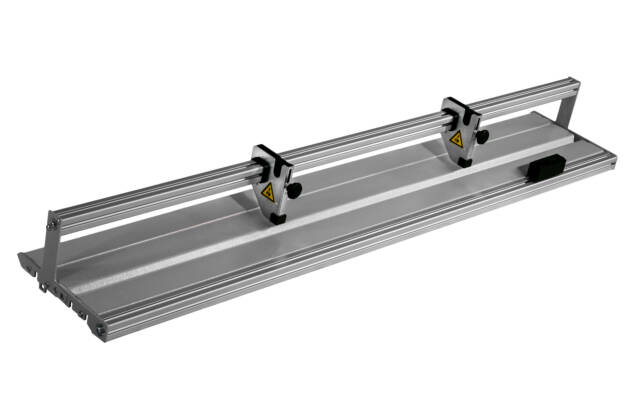

  • Longitudinal cutting unit
  • Infeed table add-on pack
  • 150 mm core adapter

Technical Details

Max. processing width

1650 mm (64.96 in / 5.41 ft)
Max. processing speed

8 m/min (26.25 ft/min)
Max. contact pressure

1.6 N/mm
Max. substrate thickness

40 mm (1.57 in)
Roller heating

70 °C (158 °F)
Dimensions (W × H × D)

2180 × 1340 × 880 mm
(85.83 × 52.76 × 34.65 in)
Table height

870 mm, adjustable up to 950 mm
(34.25 in, adjustable up to 37.40 in)
Net weight

400 kg (881.85 lbs)
Power supply

230 V, 50/60 Hz, 8 A, 1P+N+PE, 1700 W
Downloads

Relevant documents and files for this product:

  • Technical Specifications ColdLam 1650 SR
    English • PDF • 152.9 KB
    The most important technical details at a glance.
    This document provides a compact overview of key functions, performance features, and technical specifications — ideal for planning, comparison, and making well-informed decisions.
  • Manual ColdLam 1650 SR
    English • PDF • 442.3 KB
    All steps for safe and efficient operation — clearly explained and easy to follow.
    This manual guides you through setup, operation, and daily workflows in a clear and practical way, helping you use the device confidently and safely in your day-to-day work.
