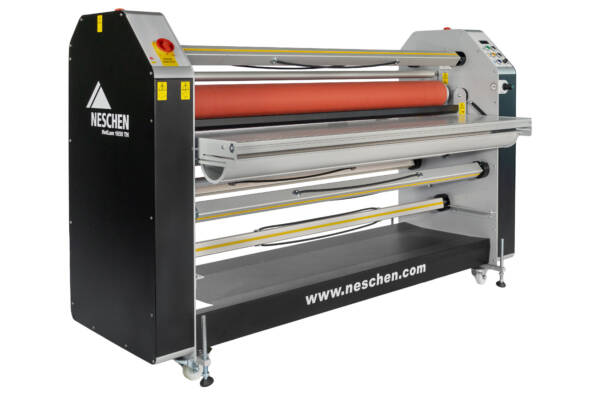

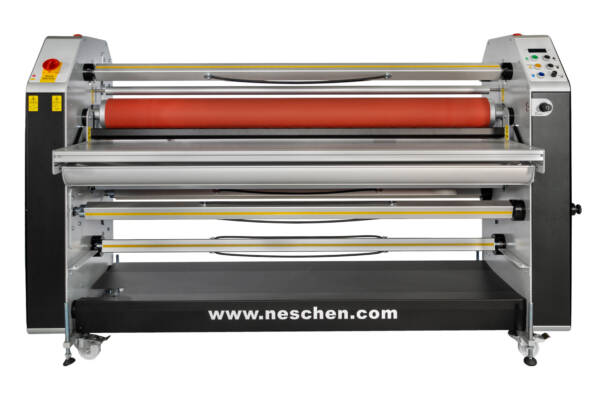

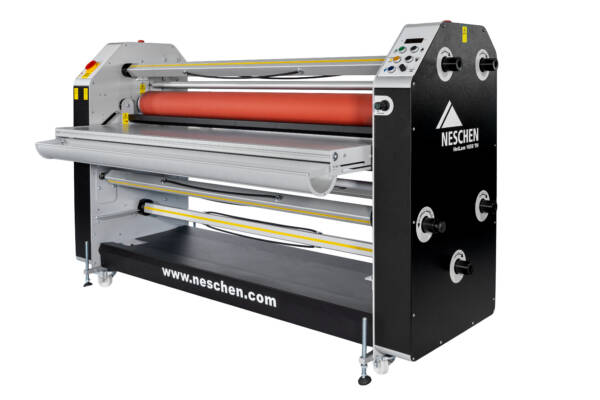

HotLam 1650 TH

The Neschen HotLam 1650 TH is a high-performance hot laminator designed for professional applications. With a 1,650 mm working width, speeds up to 12 m/min, and a heated roller temperature of 160 °C, it delivers top-tier efficiency and excellent lamination quality. Its robust construction, high contact pressure, and swing-out auto-grip shafts make it ideal for large-format signmaking, industrial finishing, and demanding graphic production environments.

SKU: 6037411 Category: Product ID: 21844
Find a Dealer

Description

This is our HotLam 1650 TH…

…the professional hot laminator for high-end applications. The HotLam 1650 TH offers variable pressure and speed settings and achieves precise, reliable results with its powerful heated top roller (up to 160 °C). With swing-out auto-grip shafts, a foldable feed table, and an ergonomic control panel, it is perfectly suited for large-format production in signmaking, display manufacturing, and industrial finishing.

Features:

  • Variable air pressure and speed adjustment for maximum flexibility
  • Swing-out auto-grip shafts for easy material handling

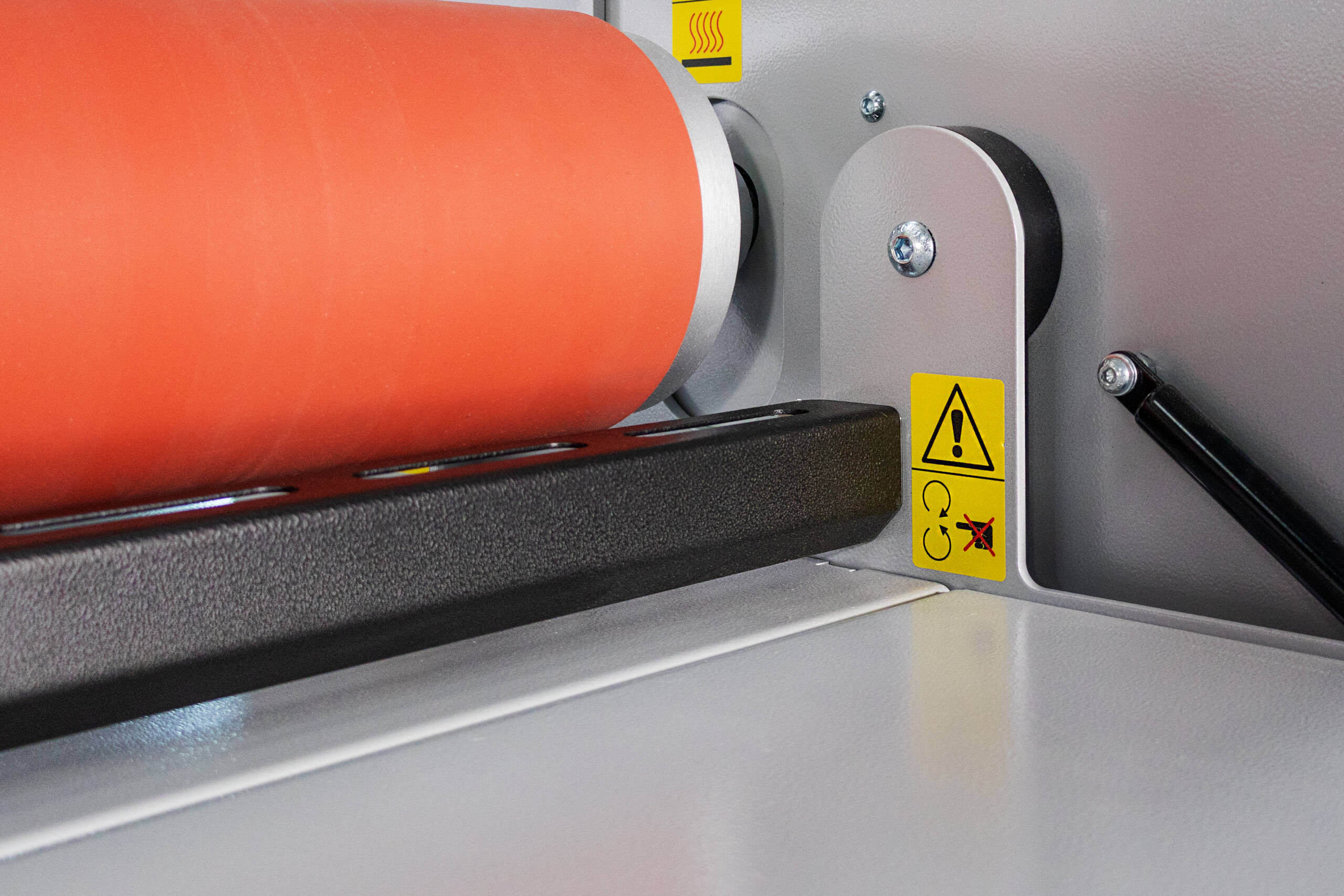

  • Heated top roller up to 160 °C for high-quality hot and cold lamination
  • High contact pressure for precise lamination results
  • Foldable feed table for convenient loading

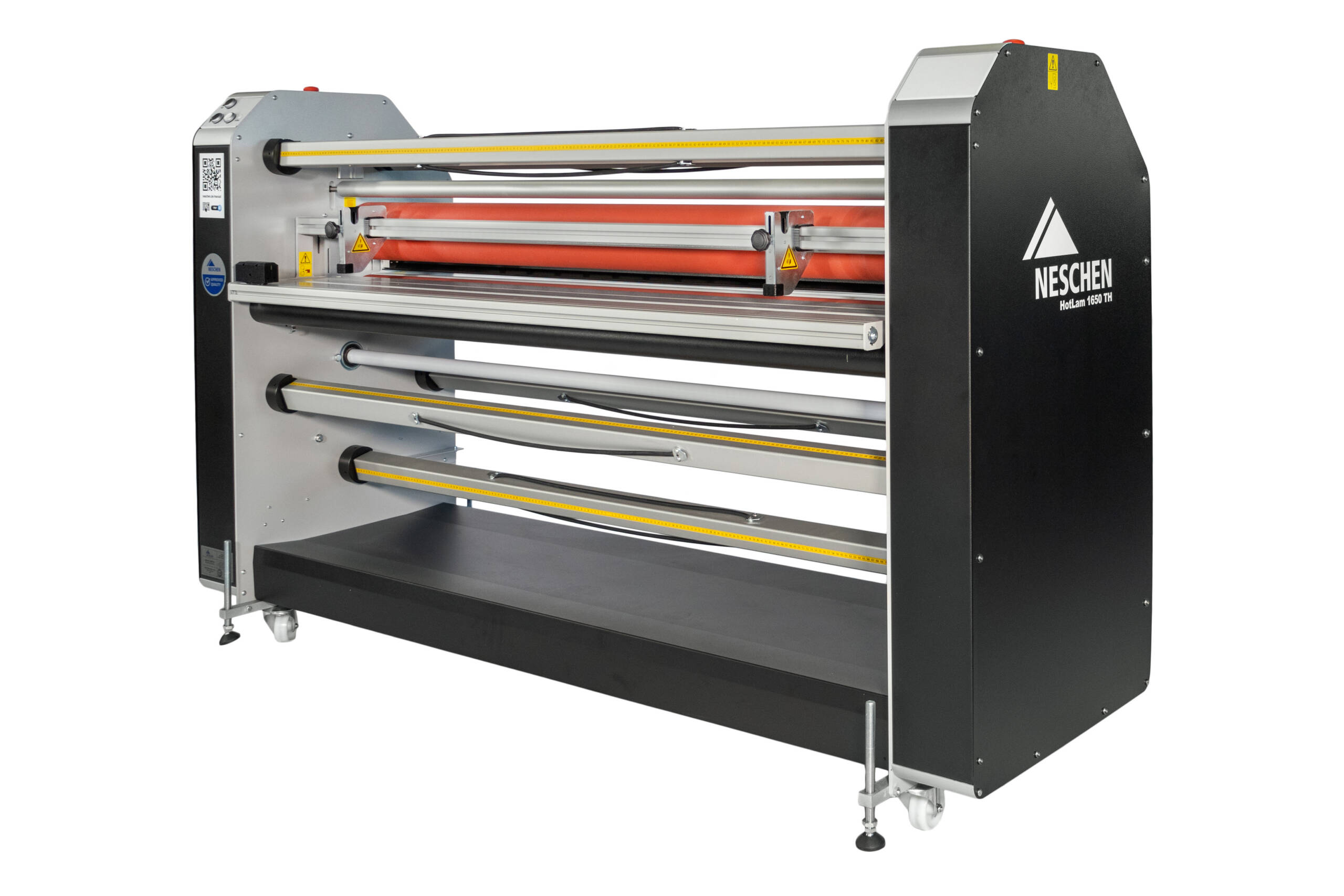

  • Additional control panel on the rear side
  • Externally located brakes for optimized film tension
  • Integrated roll-to-roll functionality

Optional:

  • Add-on Stack
  • 150 mm core adapter
  • Infeed table add-on pack

Technical Details

Max. processing width

1650 mm (64.96 in / 5.41 ft)
Max. processing speed

12 m/min (39.37 ft/min)
Max. contact pressure

1.6 N/mm (3.1 N/mm with external compressor)
Max. substrate thickness

40 mm (1.57 in)
Roller heating

160 °C (320 °F, top roller)
Roller heatingDimensions, width × height × depth

2210 mm × 1340 mm × 920 mm
(87.01 in × 52.76 in × 36.22 in)
Table height

870 mm, adjustable up to 950 mm
(34.25 in, adjustable up to 37.40 in)
Net weight

490 kg (1080.27 lbs)
Power supply

230V, 50/60Hz, 16A, 1P+N+PE, 3400W
Downloads

Relevant documents and files for this product:

  • Technical Specifications HotLam 1650 TH
    English • PDF • 178 KB
    The most important technical details at a glance.
    This document provides a compact overview of key functions, performance features, and technical specifications — ideal for planning, comparison, and making well-informed decisions.
  • Manual HotLam 1650 TH
    English • PDF • 431.6 KB
    All steps for safe and efficient operation — clearly explained and easy to follow.
    This manual guides you through setup, operation, and daily workflows in a clear and practical way, helping you use the device confidently and safely in your day-to-day work.
