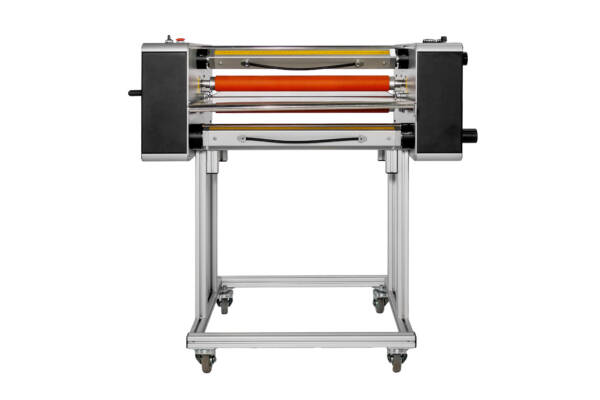

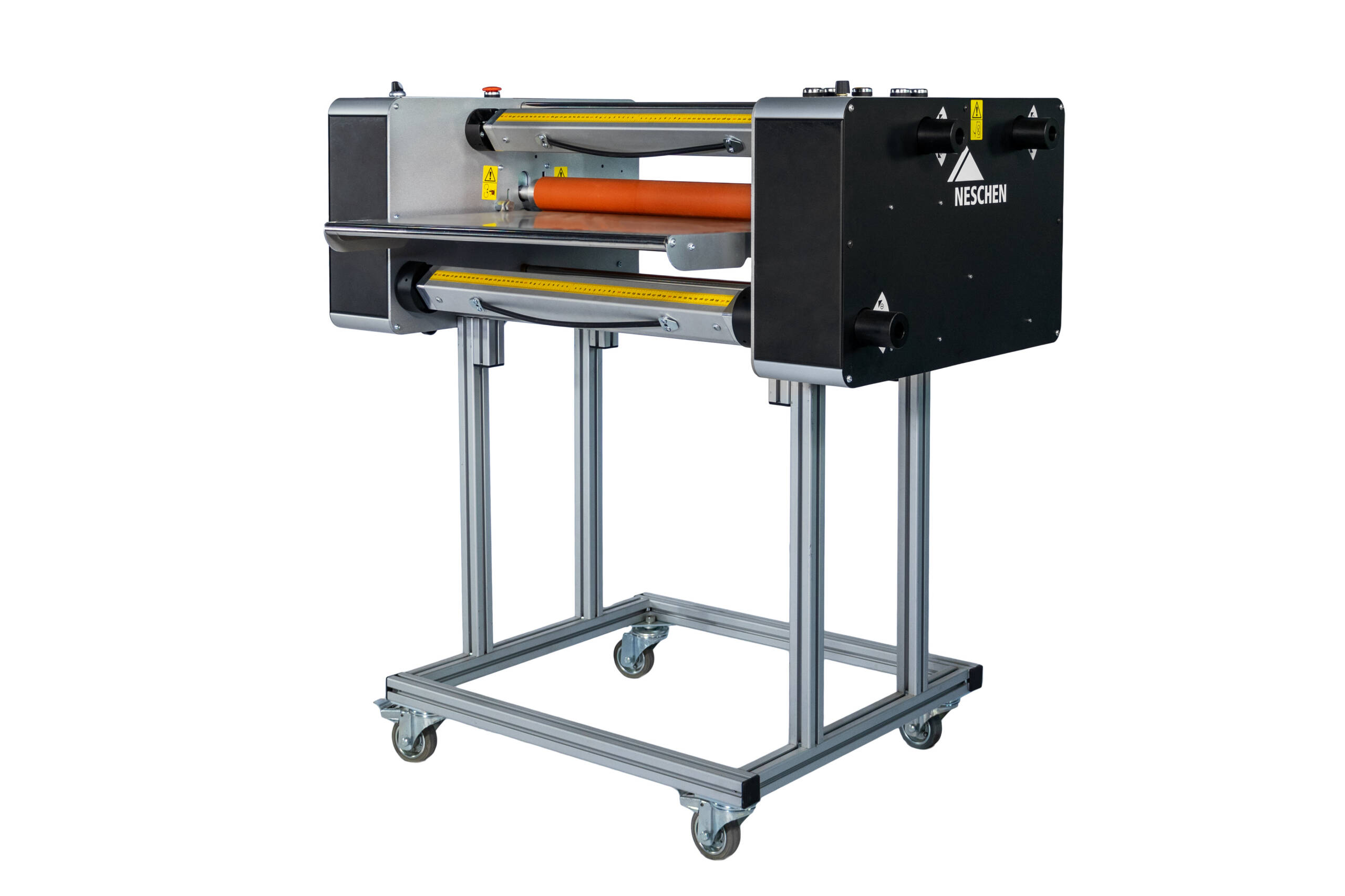

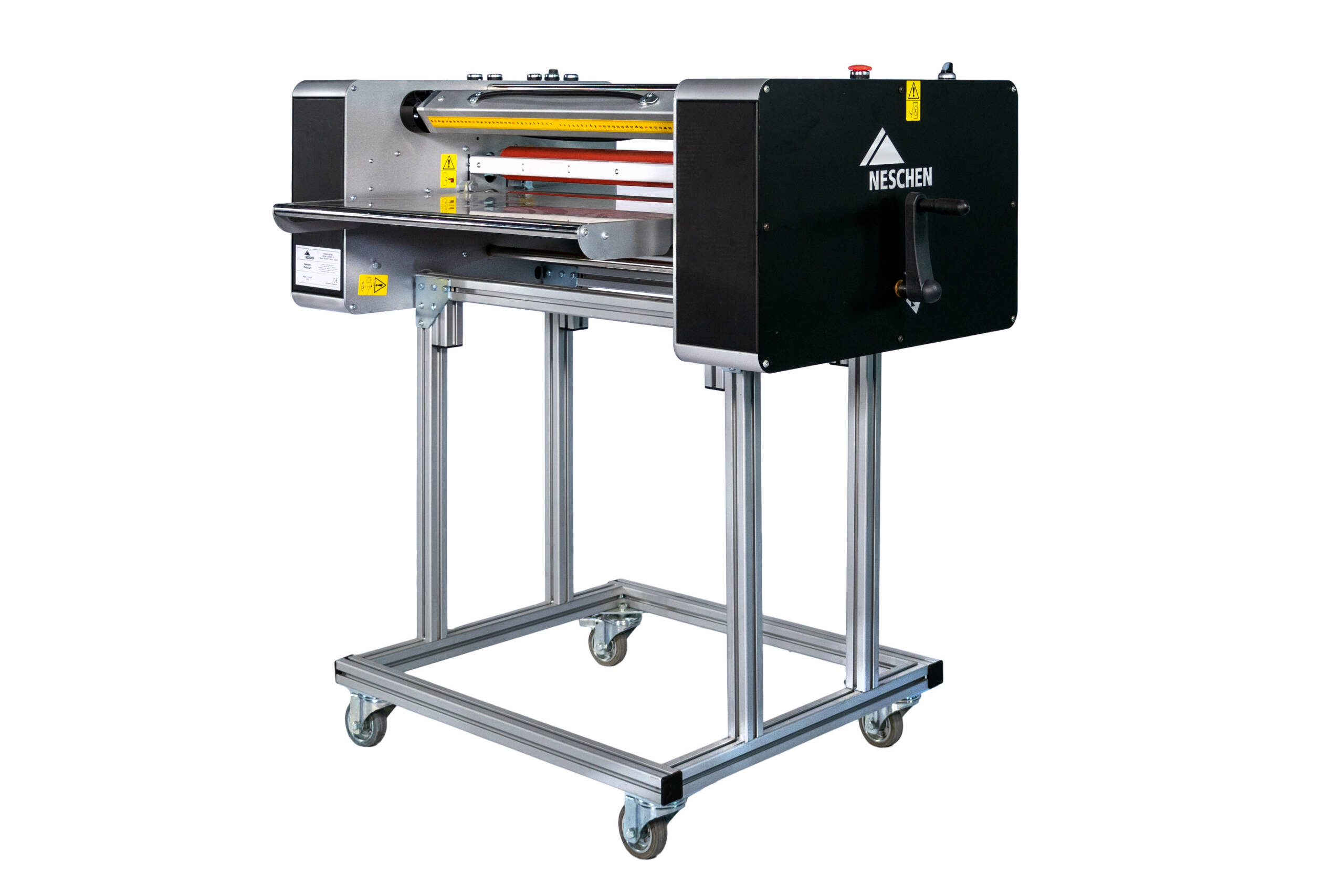

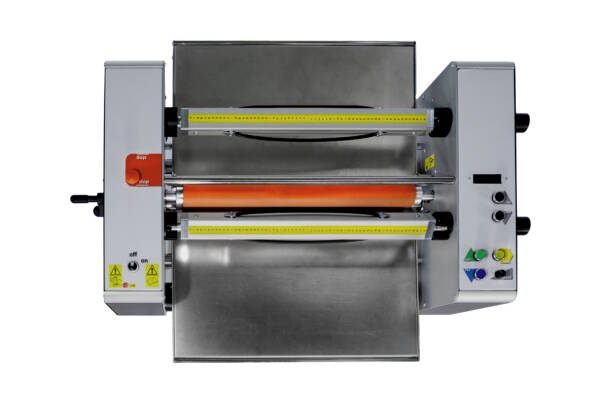

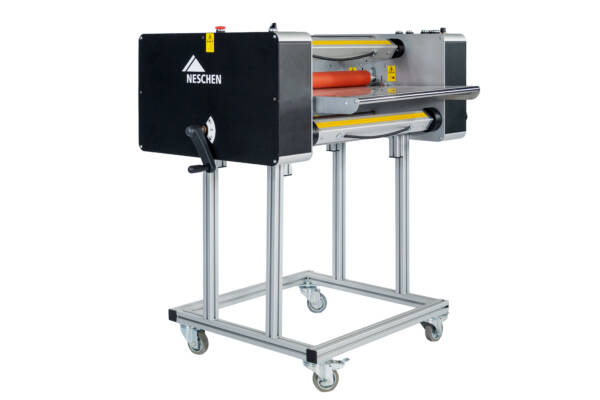

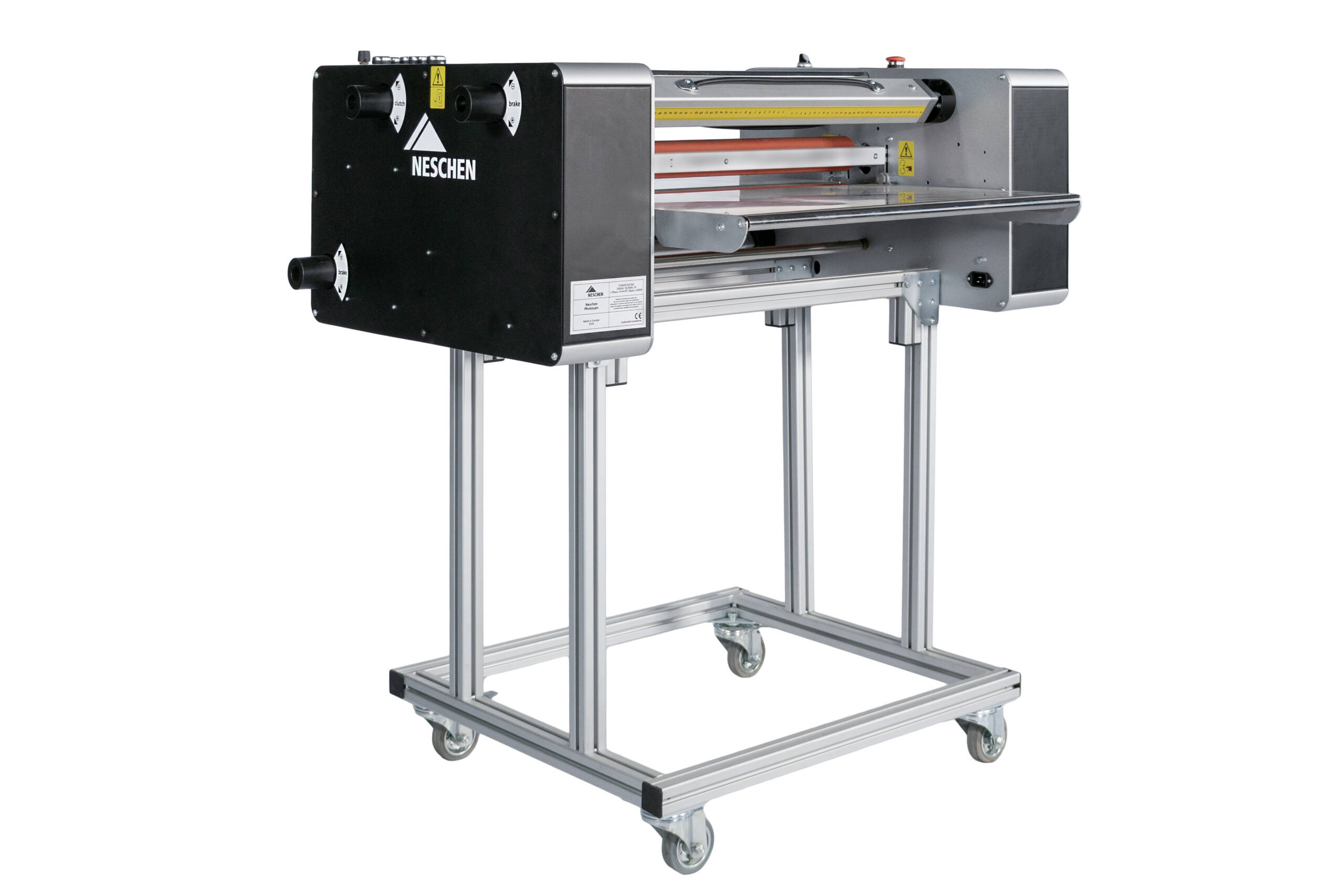

PhotoLam 650

The Neschen PhotoLam 650 is a compact laminator designed for photo formats and small print widths. With a working width of 650 mm, variable speed control and precise roller handling, it is ideal for photo finishing, art prints, small displays and high-quality lamination tasks. Its user-friendly control panel, fold-up feed table and flexible lamination methods (sheet or roll) make it a professional solution for studios, copy shops and small-scale production environments.

SKU: 6041404 Category: Product ID: 21857
Find a Dealer

Description

This is our PhotoLam 650…

…the compact laminator designed for photo formats and high-quality print finishing. With a working width of 650 mm, the PhotoLam 650 is ideal for photo prints, art reproductions, small displays and various specialty applications. The machine features variable speed control, precise roller adjustment and a user-friendly control panel for safe and high-quality laminating. The fold-up feed table and flexible material holders ensure easy handling of different media.

Features:

  • Working width up to 650 mm for photo and graphic formats
  • Continuously adjustable speed (0–2 m/min)
  • Manually adjustable roller height
  • Fold-up feed table for convenient handling
  • Auto-grip material holders for easy loading
  • Removable or fold-up outfeed table
  • Robust construction and easy operation

Technical Details

Max. processing width

650 mm (25.59 in / 2.13 ft)
Max. processing speed

2 m/min (6.56 ft/min)
Max. contact pressure

50 kg (110.23 lbs)
Max. substrate thickness

20 mm (0.79 in)
Roller heating

70 °C (158 °F) (top roller)
Dimensions, width × height × depth

1250 mm × 1180 mm × 960 mm
(49.21 in × 46.46 in × 37.80 in)
Table height

920 mm on support (36.22 in)
Net weight

115 kg (253.53 lbs)
Power supply

230V, 50/60Hz, 6A, 1P+N+PE, 1300W
Downloads

Relevant documents and files for this product:

  • Technical Specifications HotLam 620 DH
    English • PDF • 147.5 KB
    The most important technical details at a glance.
    This document provides a compact overview of key functions, performance features, and technical specifications — ideal for planning, comparison, and making well-informed decisions.
  • Manual ColdLam HotLam 620 DH
    English • PDF • 560.9 KB
    All steps for safe and efficient operation — clearly explained and easy to follow.
    This manual guides you through setup, operation, and daily workflows in a clear and practical way, helping you use the device confidently and safely in your day-to-day work.
